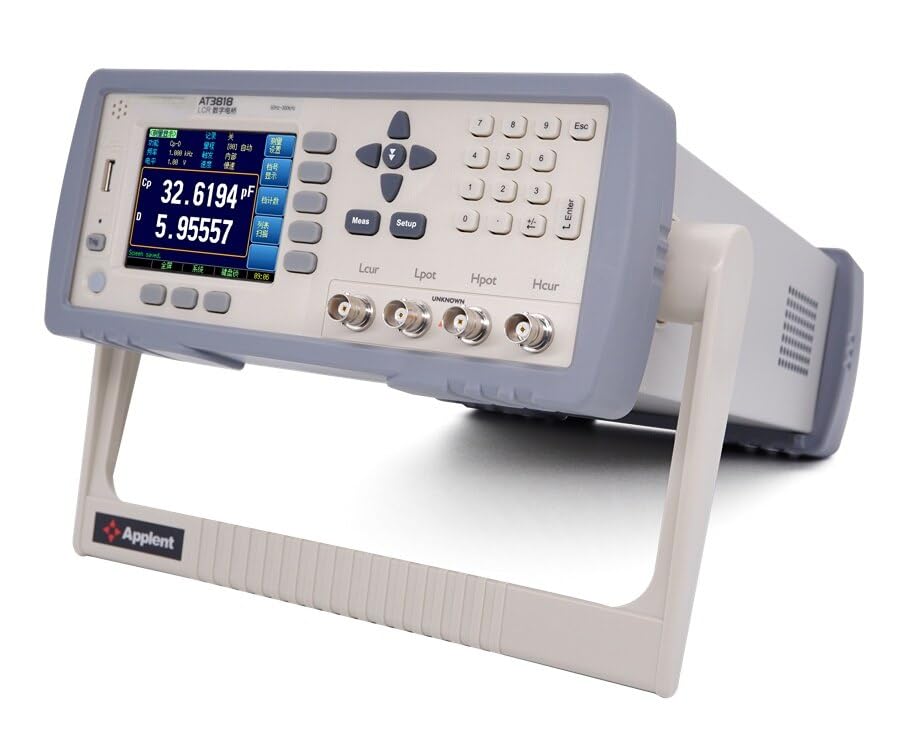

AT3818 10Hz-300kHz 0.05% Accuracy LCR Meter with DCR DC Bias Test Signal 0.01V-2V for Measuring Inductors Capacitors Resistors, TFT Color LCD Display, SCPI Modbus Handler Interfaces

The AT3818 provides accurate impedance measurements up to 300kHz for testing and classifying capacitors, inductors, resistors, and more. With a base accuracy of 0.05%, you can be confident in your measurements for component verification and defect detection. The wide test frequency range of 10Hz to 300kHz covers all common passive components, while the signal amplitude of 0.01V to 2V minimizes the effects of the test process.The fast test speed of 40 tests/second allows for efficient use on the production line. DC resistance measurement ranges from 0.00001Ω to 99.9999MΩ, and optional DC bias voltages up to ±2.5V extend functionality. Intuitive TFT color LCD clearly displays numbers, menus and results. An integrated interface enables automatic sorting and external control. The compact LCR meter delivers lab-grade performance, making it ideal for production and quality control environments. SPECIFICATIONS - 0.05% basic accuracy - 10Hz to 300kHz Frequency Range - 0.01V to 2V signal amplitude - DCR and ±2.5V DC bias modes - 0.00001Ω to 99.9999MΩ Range - TFT color LCD - Maximum test speed 40 times/second - Comparator, Handler, SCPI, Modbus

• Wide 10Hz to 300kHz test frequency range covers all common capacitive and inductive components.
• High basic accuracy of 0.05% provides reliable measurement values.
• Low test signal from 10mV to 2V minimizes impact on measured components.
• Fast test speeds up to 40 tests/sec for efficient production line use.
• DCR measurement and ±2.5V DC bias allow expanded component testing.
