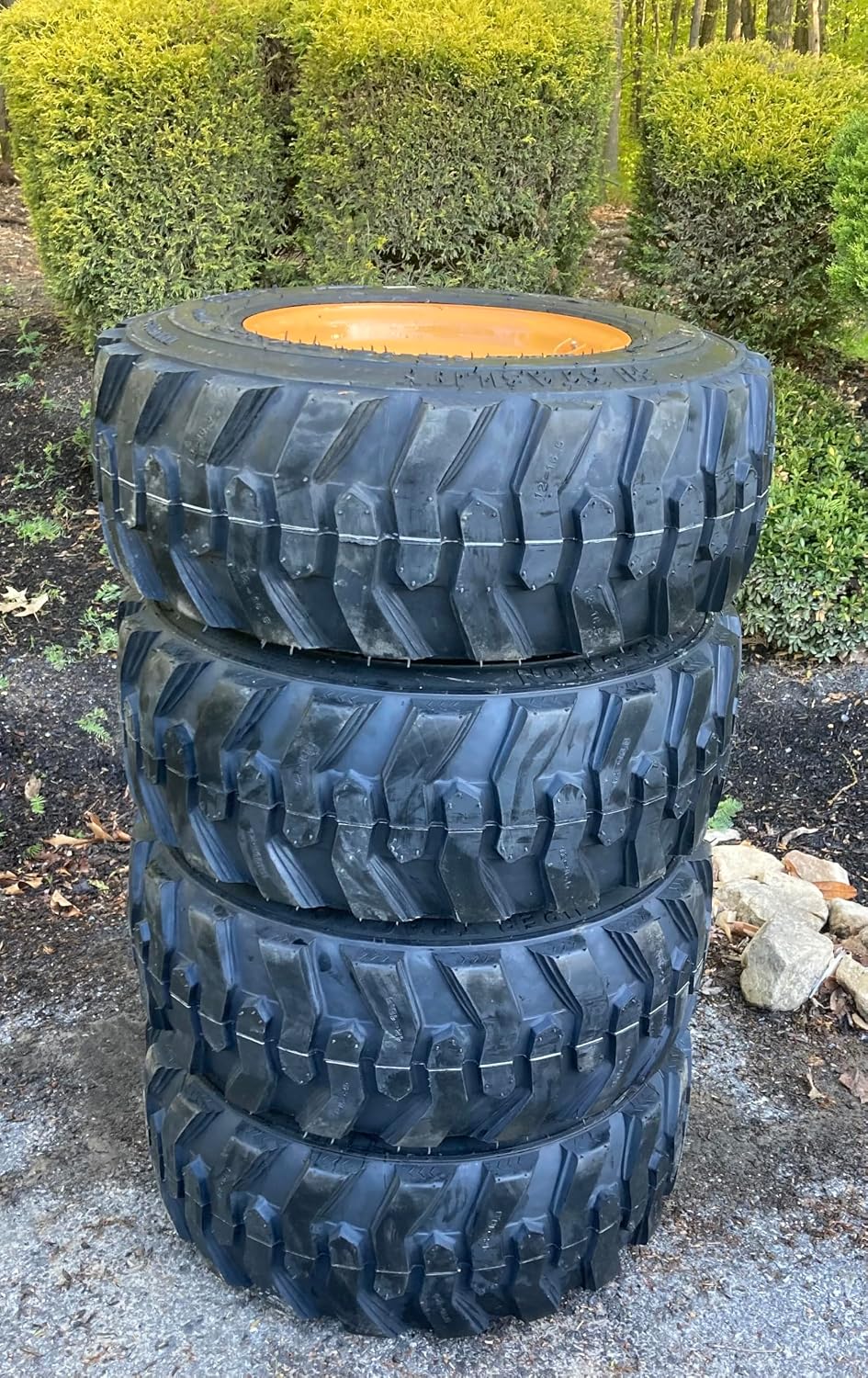

Set of 4-12-16.5 Forerunner SKS-1 Skid Steer Tires on Wheels/Rims (8 lug) for Case & more (3.88" Back Spacing) -14PLY -12X16.5
Product details
| Management number | 214859615 | Release Date | 2026/04/12 | List Price | US$36.00 | Model Number | 214859615 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Set of 4-12-16.5 Forerunner SKS-1 Skid Steer Tires mounted on 8 lug Wheels for Case & more - 12X16.5 - 14 PLY. Ready to put on your machine & go! To ensure fitment please refer to our fitment guide in features & details of this listing, or confirm the wheel specifications we have listed are correct for your machine. Tires weigh approximately 92 pounds with a 6780 pound load capacity rating per tire - Max inflation pressure 90 PSI. Tire dimensions are 31 high with 12 overall tire width including rim guard - 23/32nds tread depth.~Shipping Dimensions. 4 piece(s) - 31 x 12 x 31, 92lb. (each)
- Set of 4-12-16.5 Forerunner SKS-1 Skid Steer Tires mounted on 8 lug Wheels for Case & more - 12X16.5 - 14 PLY. Ready to put on your machine & go!
- FITMENT. Fits Case 1845, 1845C, 430, 435, 440, 450, 465, SR175, SR210, SR220, SR240, SR270, SV185, SV280 and will also fit many other machines. Also fits Case XT series 60XT, 70XT, 75XT, 85XT, 90XT, 95XT but it will increase the machine width since these rims have a deeper offset than standard for Case XT series. These rims can be reversed and mounted with valve stem facing inward if needed. This would then make the offset correct for the XT series.
- 8 on 8" BOLT PATTERN. This 8-lug rim design with a 6" center hole and 8" lug pattern fits most skid steers. Bobcat, Case, CAT, Daewoo, Gehl, John Deere, Mustang, New Holland, Kubota, Volvo, Takeuchi, Scat Trak & Thomas made most of their machines with an 8-lug rim. The main difference is offsets vary between manufacturers but most of the rims do interchange. Rim offsets are 6.75" from valve stem side with 3.88" backspacing, plus the tire will add around 1/2".
- Bias Ply Tubeless all-season offroad equipment air / pnuematic Tires. These are air-filled pneumatic tires that we can have foam filled for an additional amount if needed. Please inquire if interested.
- TIRE FEATURES. The Forerunner SKS-1 has been designed for standard off-road applications. These are economy tires and not recommended for heavy duty commercial applications or continuous hard surface wear.
- Directional and self-clean out tread design for an improved traction performance.
- Good economical tire option suitable for a wide variety of applications.
- Standard R-4 tread pattern design. Tapered tread increases in depth to the outside edge.
| Ply | 14-Ply |
|---|---|
| Size | 12-16.5 |
| Seasons | Year Round |
| Rim Size | 16.5 Inches |
| Rim Width | 9.75 Inches |
| Brand Name | Forerunner |
| Load Index | 174.00 |
| Tread Type | Directional |
| Unit Count | 4.0 Count |
| Item Weight | 92 Pounds |
| Tread Depth | 23 32nds |
| Speed Rating | A2 |
| Item Diameter | 31 Inches |
| Load Capacity | 6780 Pounds |
| Section Width | 12 Inches |
| Tire Diameter | 31 Inches |
| Item Type Name | Skid Steer Tires & Wheels |
| Maximum Pressure | 90 Pound per Square Inch |
| Tire Aspect Ratio | 70 Millimeters |
| Included Components | 4-NEW 12-16.5 Forerunner SKS-1 Mounted on Wheel(s). Ready to put on your machine & go! |
